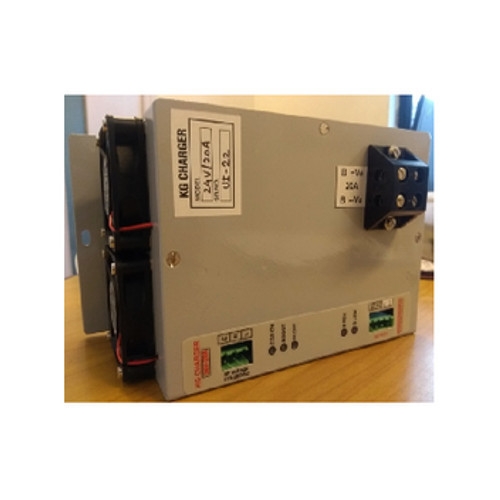

The 24V-20 Amps Battery Charger is one of the various SMPS type
battery chargers manufactured by the company. This battery charger
has been specifically designed for non-cyclic operation---Genset
application & Industrial control Panels, UPS, etc.
The charger has special design features like compact size, remote relay
contact, battery over voltage protection, deep discharge battery
charging etc.
The charger is high frequency CVCC (Constant Voltage Constant
Current) charger with exclusive feature of sharp knee-point for
accelerated charging. The Charger output is available only after
connecting the battery.

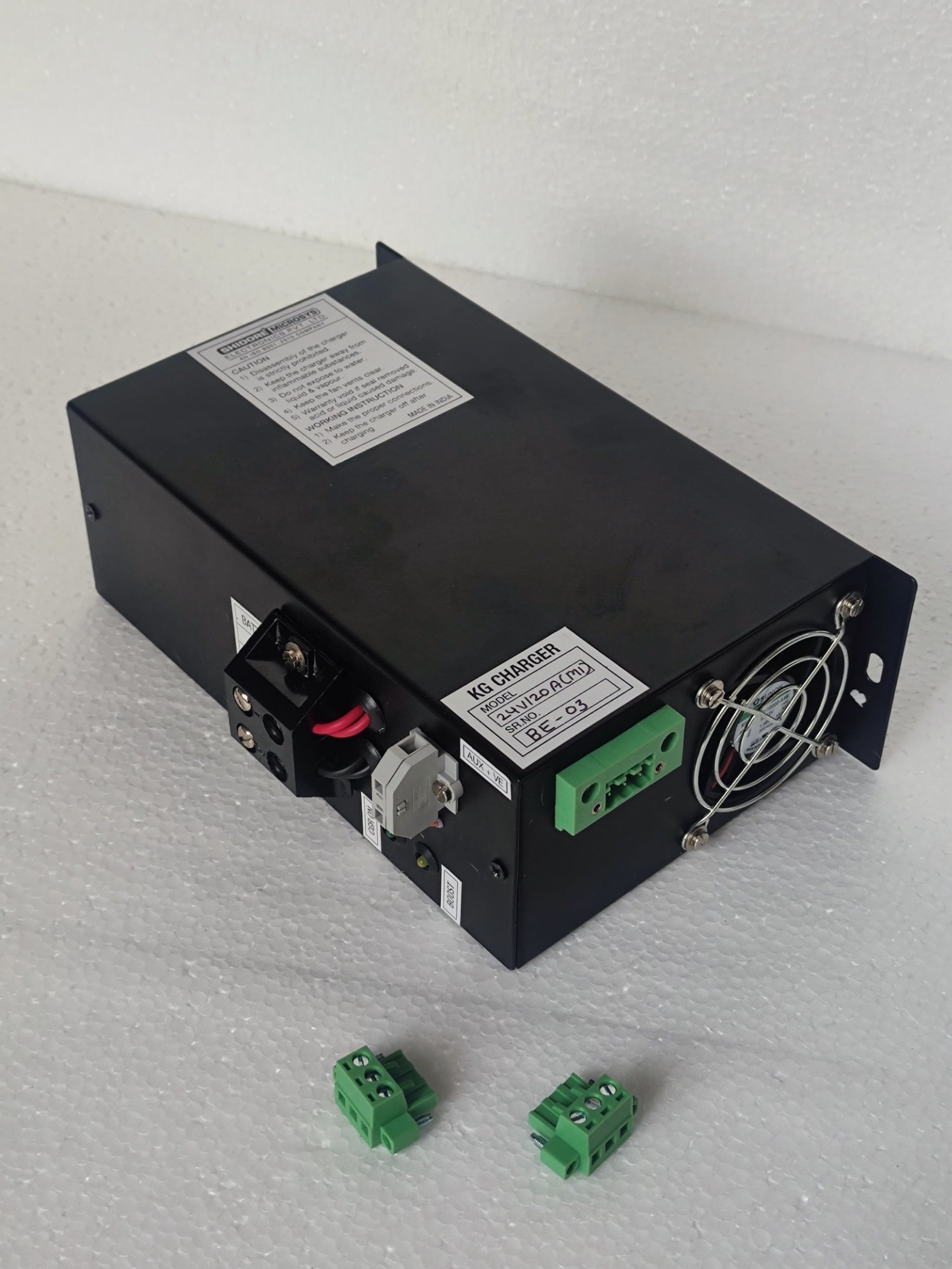

The input and output connections are available on 3 pin & 4 pin
connector blocks. The Company manufactures battery chargers ranging
from 12V-6A TO 110V-8Amps (or from 70 to 1500 Watts).
NO PARAMETER RANGE APPLICATION ADVANTAGE
1 INPUT VOLTAGE 230V
(150V to 270V) WIDE RANGE
2 INPUT FREQUENCY 50/60 Hz +/- 3% WORDWIDE SUTABLE
3 OUTPUT VOLTAGE 28 VDC (±0.3V) SUITABLE FOR 2 NOS OF 12V BATTERY
4 OUTPUT CURRENT 10 AMPS CAN CHARGE 90-110 AH BATTERY
5 REGULATION < 2 % EXCELLENT BATTERY CHARGING
6 MIN. BATT
VOLTAGE CUT IN <5 V DC CAN CHARGE DEEP DISCHARGE BATTERY
7 MAX. BATT
VOLTAGE CUT OFF 29V TO 32V DC AUTOMATIC CUT OFF WHEN 3NOS.
12V BATTERIES CONNECTED
8 O/P SHORT CCT PROTECTED BY
RELAY
AFTER SHORT CKT REMOVAL NORMAL
OPERATION STARTS
9 BATTERY REVERSE PROTECTED BY
RELAY
AFTER BATTERY REVERSE REMOVAL
NORMAL OPERATION STARTS
10 BATTERY LOW
INDICATION 18V TO 21V DC PROPER VISUAL WARNING TO TAKE
CORRECTIVE ACTION
11 FLOAT TO BOOST
CURRENT 1.5A TO 2.5 A CHARGES BATTERY FAST
12 REMOTE RELAY
CONTACT CLOSE
ON CHARGER
FAULT
CAN GIVE AUDIO VISUAL WARNING AS
SELECTED
13 DIMENSIONS (mm) 190L X61HX101 W COMPACT SIZE
14 OPERATING
TEMPERATURE 0° C TO 50° C
15 MOUNTING FLANGE
AT BACK SIDE
MOUNTING, 10X5 SLOT AT CENTER
DISTANCE OF 180 mm
