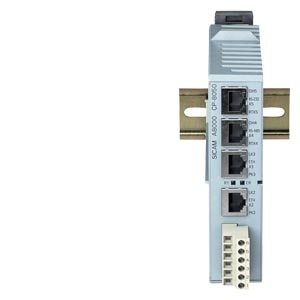

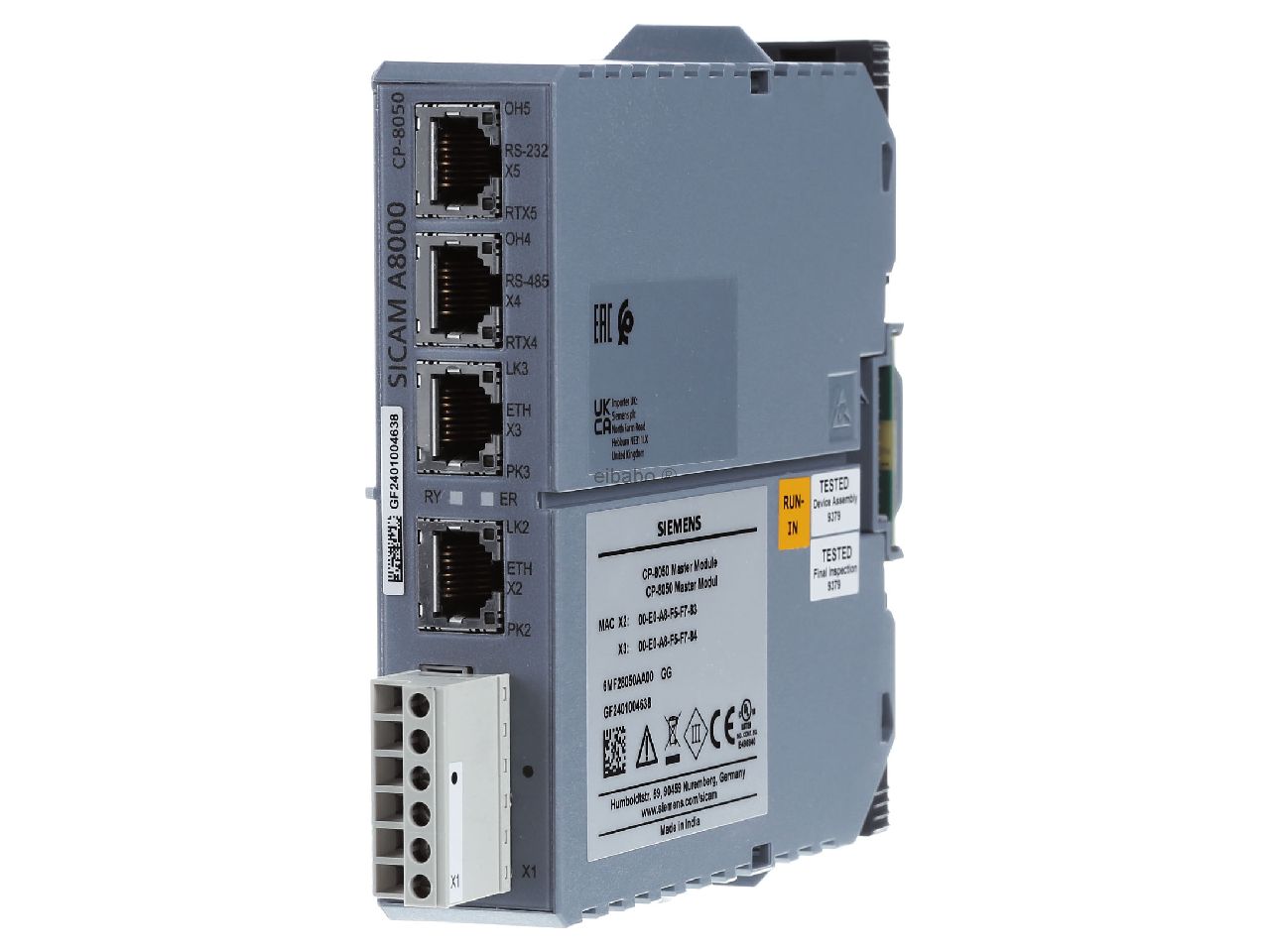

Siemens SICAM A8000 CP-8050

SICAM A8000 CP-8050 is a master module which supports 2x RJ45 Ethernet and 2x serial interfaces. Power supply PS-862x or PS-864x is required. Singular or redundant power supply is supported. Up to 16x SICAM A8000 I/O modules can be connected right beside the power supply.

Technical Specifications:

Ø  Core Clock Frequency : 800 MHz

Ø   Enhanced Integrated WEB Server

Ø  Up to 34nos. of Ports (Serial/Ethernet)

Ø   Up to 24nos. of Protocol : Modbus RTU/TCP, DNP3 Sr/TCP, IEC-103, IEC-101 , IEC-104, IEC61850 Ed1/2, OPC UA Pub Sub

Ø  10nos. of Master Supported on IEC-104

Ø   Redundant : Device, Power Supply, I/Os,Ø Network (PRP/HSR/RSTP/Line)

Ø  Power Supply : 24-60VDC , 110-220VDC/AC

Ø  4096 Hardwired I/O , 400000 Data Points

Ø  DI,DO,AI,AO,Pt100/1000,Ni100, CT,VT

Ø  Integrated Crypto chip for Cyber Security
