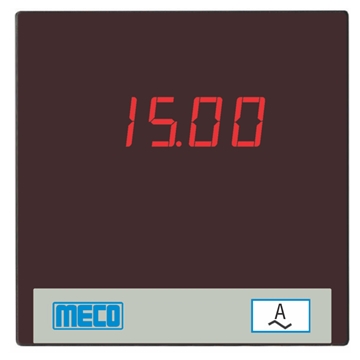

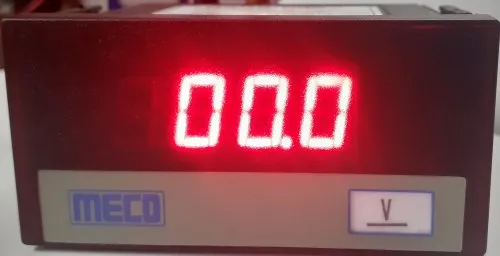

Models : SMP35S, SMP9635S
Features :
- Measuring Method : Dual Slope A/D Conversion
- Sampling Rate : 2.5 Samples per Second
- Display Type : 0.56" / 14.2mm Red LED Super Bright Display
- Maximum Display : 3½ Digit / 1999 Counts (Max)
- Resolution : 0.001 to 1 Count depending on range
- Polarity Indication : "-" is indicated for Negative Input
- Decimal Selection : Field Selectable
- Over Range Indication : "1" or "-1"
- Maximum Overload Voltage : 1.2 times continuous, Current : 2 times continuous
- Faceplate / Lens : Red Antiglare Faceplate with Annunciators
- Crest Factor : 4 (max.) TRMS accuracy specified for sine wave input
- Frequency Response 40 - 400Hz
- VA Burden (Typical) : Auxiliary (110 / 230V AC) : < 5VA, Auxiliary : < 2.5VA, Voltage : < 1.0VA, Current : < 1.0VA
- Dielectric Strength : 2.5 kV at 50Hz for 1 min. between Input - Auxiliary - Case - Terminals
- Case / Housing Material : DIN Black ABS, Dimension as per DIN 43700
- Mounting Clamps : Sturdy,Moulded ABS with suitable Hardware
- Connectors : Terminal Block : Thermoplastic (UL 94V-0) with Tin Plated Brass Terminals
- Environment Calibration : 27OC±5OC, Operating : 0 to 50OC, RH < 70%, Storage : -10 to 60OC, RH < 70%
